A+R Armaturen

 The highest priority for A+R Armaturen GmbH is producing ball valves which perform reliably and improve the safety & efficiency of our customers' plants. A+R delivers on its promises.

 States of the art, specially designed test benches for A+R are used to ensure the highest level of quality. Only test results above and beyond the given standards will be accepted by A+R.

A+R Armaturen product

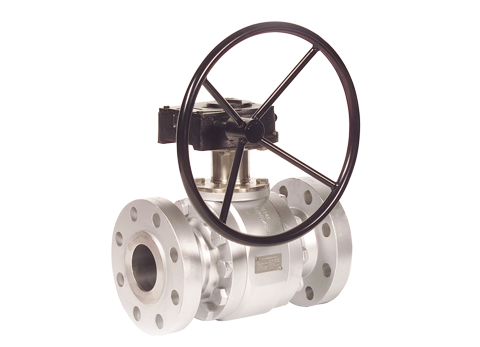

HIGH PERFORMANCE METAL SEATED BALL VALVES

  • CF8M-WCB-CF8-316L-Duplex-Super Duplex-Hastelloy-Monel-Inconel
  • DN 15-350/ 1/2»-14», PN 10-40/ ANSI 150-900
  • Temperature range -50°C to +650°C
  • Live load state of the art sealing system
  • Floating or trunnion mounted ball

HARD COATED SEALING SYSTEMS:

  • Flame spray method (HVOF)
  • Tungsten or chrome carbide
  • Diffusion method (Boride)

 KHF_710_Metal_DIN

KHF_710_Metal_ANSI_150-300-600

KHF_710_Metal_ANSI_900-1500


METAL SEATED ISOLATOR BALL VALVES

  • CF8M-316L-CF8-WCB
  • DN 15-150/ 1/2» — 6», PN 10-40/ ANSI 150-300
  • Temperature range -50°C to +300°C
  • Graphite loaded standard sealing system

HARD COATED SEALING SYSTEMS:

  • Diffusion method (Boride)

KHF_510_Metal_ANSI_150-300-600

KHF_510_Metal_DIN

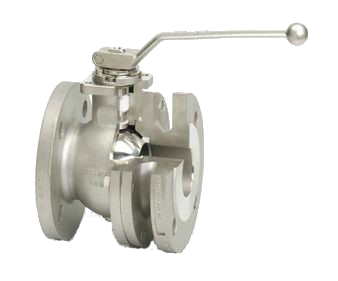

HIGH PERFORMANCE SOFT SEATED BALL VALVES

  • CF8M-316L-CF8-WCB-Duplex-Super Duplex-Hastelloy-Monel
  • DN 15-350/ ½»-14», PN 10-40/ ANSI 150-600
  • Temperature range -50°C to +260°C
  • Optional: Live load state of the art sealing system
  • Floating or trunnion mounted ball

SOFT SEATED SEALING SYSTEMS:

  • PTFE (TFM 1600)
  • PTFE Compounds
  • PEEK

KHF_510_PTFE_PEEK_ANSI_150-300-600

KHF_510_PTFE_PEEK_DIN

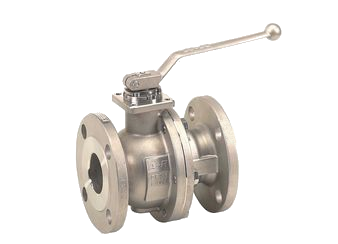

 SOFT SEATED ISOLATOR BALL VALVES



  • CF8M-WCB
  • DN 15-150/ ½»-6», PN 10-40/ ANSI 150-300
  • Temperature range -50°C to +200°C

SOFT SEATED SEALING SYSTEMS:

  • PTFE (TFM 1600)

KHL_510_PTFE_ANSI_150-300

KHL_510_PTFE_DIN

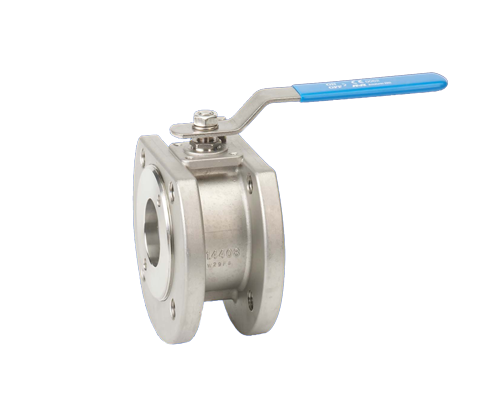

Series KHK 850

Wafer type ball valve

  • DN 15-150, PN 10-40
  • Flange connection

KHK_850_PTFE

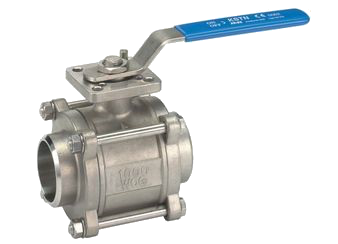

Series KH (240,300,310)
Thread- and welded end ball valves

  • DN 10-100, PN 40-63
  • Thread- and welded end connection
  • With ISO 5211 top flange

KH_240-310

KH_240_300_310_DIN_PTFE_Antrieb_Actuator

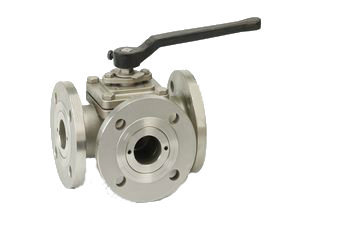

Series 615 / 620
3-Way ball valves

  • DN 25-150, PN 10-40
  • Flange or threaded end connection

KH_615_DIN_PTFE

KH_620_DIN_PTFE

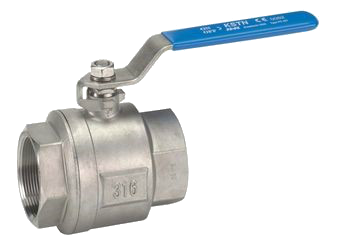

Series PC (102, 207, 302)
Thread- and welded end ball valves

  • DN 10-100, PN 40-63
  • Thread- and welded end connection

PC_102_207_302_DIN_PTFE


Series ARS
Pneumatic actuator for ball valves

  • Single or double acting
  • ISO 5211 top flange
  • Easy assembly of NAMUR-Accessories
  • Long life time

Actuators

Accessories
Various accessories -mechanical & electrical

  • Stem extensions
  • Locking devices
  • Special levers
  • Gearboxes
  • Heating jackets
  • Limitswitches
  • Solenoid valves
  • Electronic sensors

Accessories
